TRUMPF TruLaser 5030 fiber Official Catalogue
2014 TRUMPF TruLaser 5030 fiber Laser cutting machine (Fiber)
| Ref. | 3403760937 |
|---|---|
| Brands | TRUMPF |
| Models | TruLaser 5030 fiber |
| Types of machine | Laser cutting machine (Fiber) |
| Category | 2D Laser Cutting Machines |
| Year | 2014 |
| Availability | Sold |
Technical Data
| Beam ON Working hours | 18.868 h |
|---|---|
| Control | SIEMENS SINUMERIK 840D |
| Dimensions (long x wide x high) | 8.800 x 4.800 x 2.400 mm |
| Electric consumption entire unit | 35 kW |
| Laser Output | 5 kW |

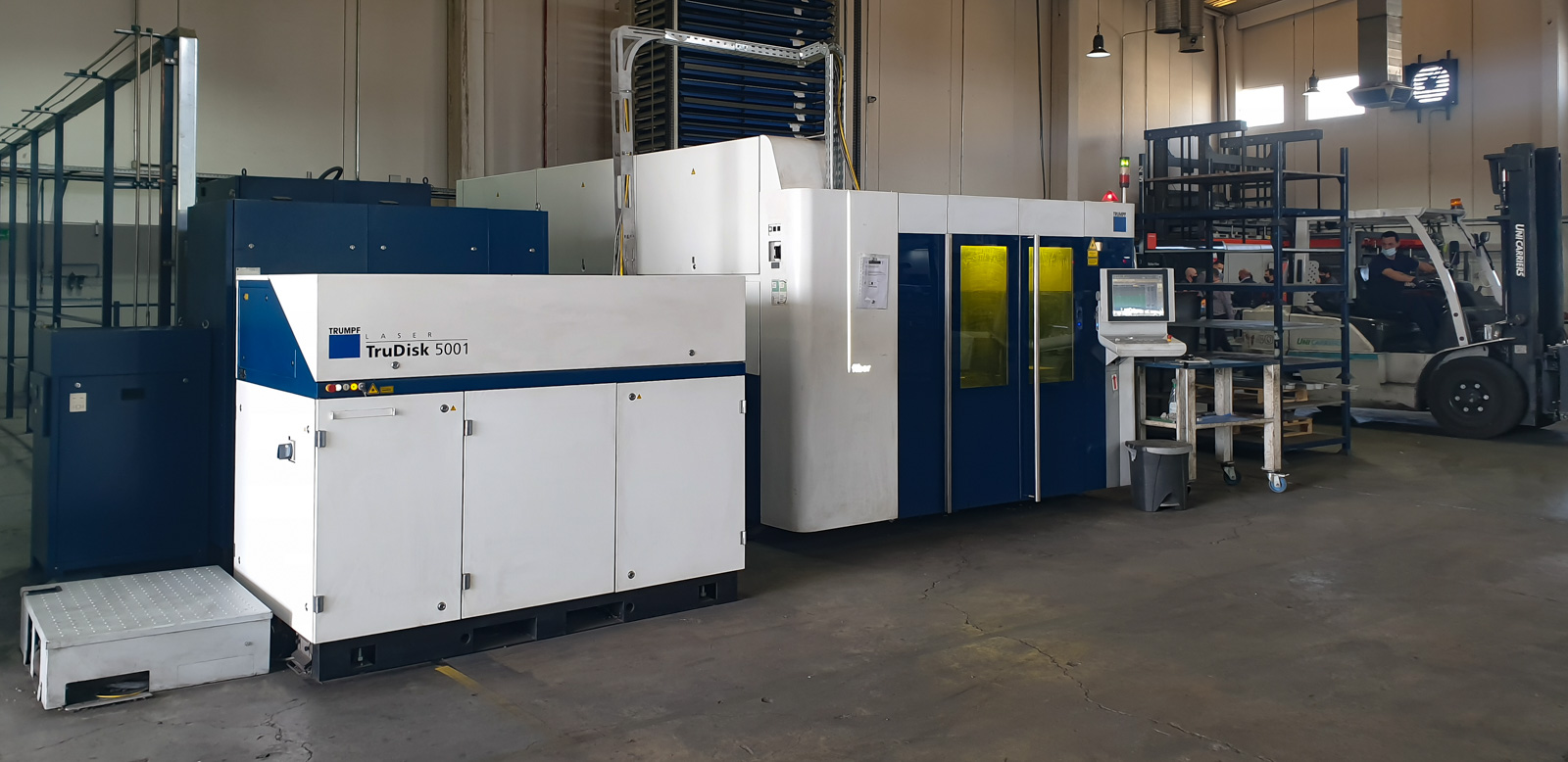

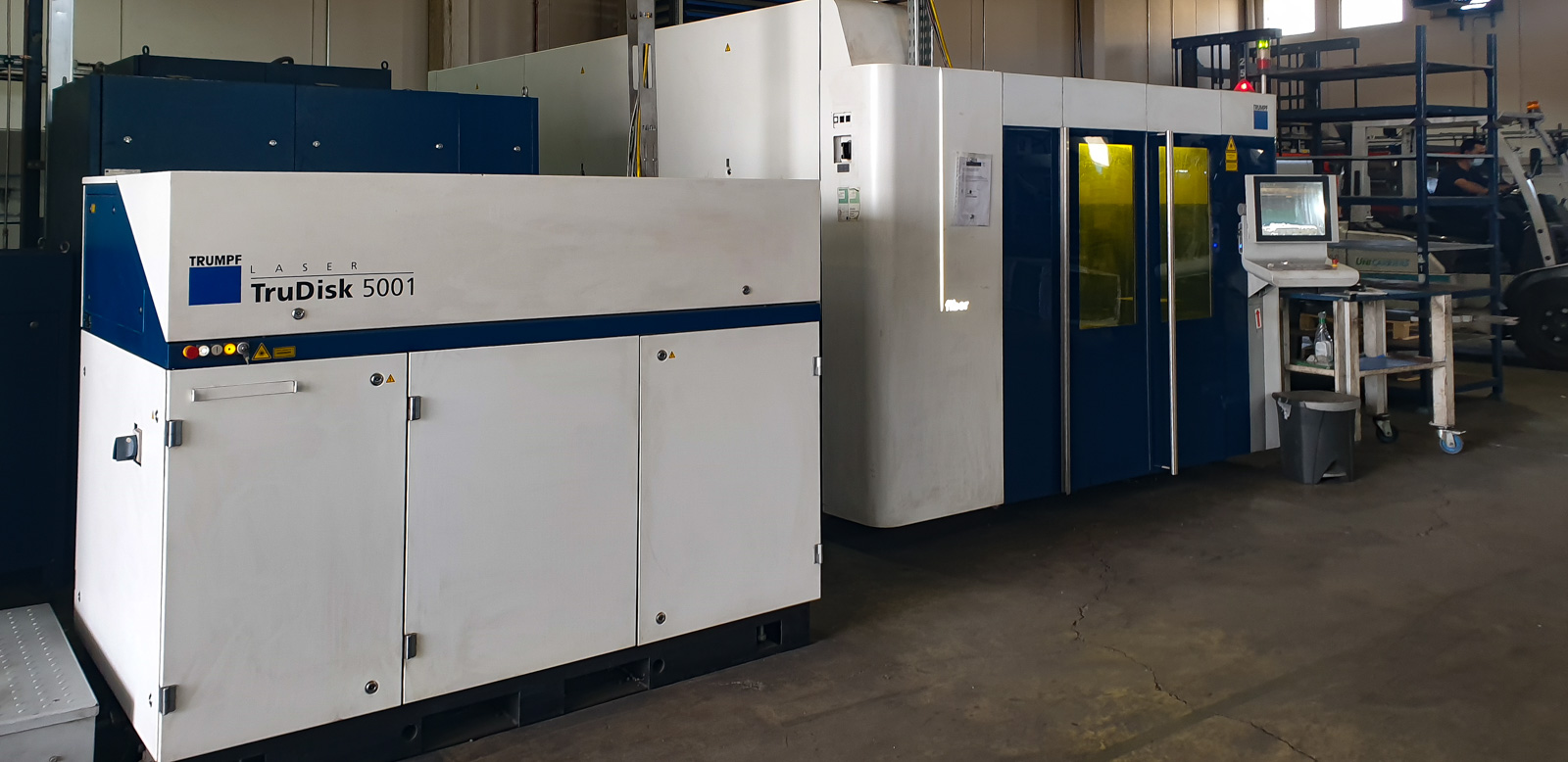

| Laser Type | fiber TruDisk 5001 |
| Machine ON Working hours | 43.239 h |
| Max. workpiece weight | 900 kg |
| Maximum material thickness aluminium | 20 mm |
| Maximum material thickness mild steel | 25 mm |
| Maximum material thickness stainless steel | 20 mm |
| Simultaneous positioning speed | 265 X+Y m/min |
| Weight | 12.000 kg |
| Working area (X x Y x Z) | 3.000 x 1.500 x 115 mm |
