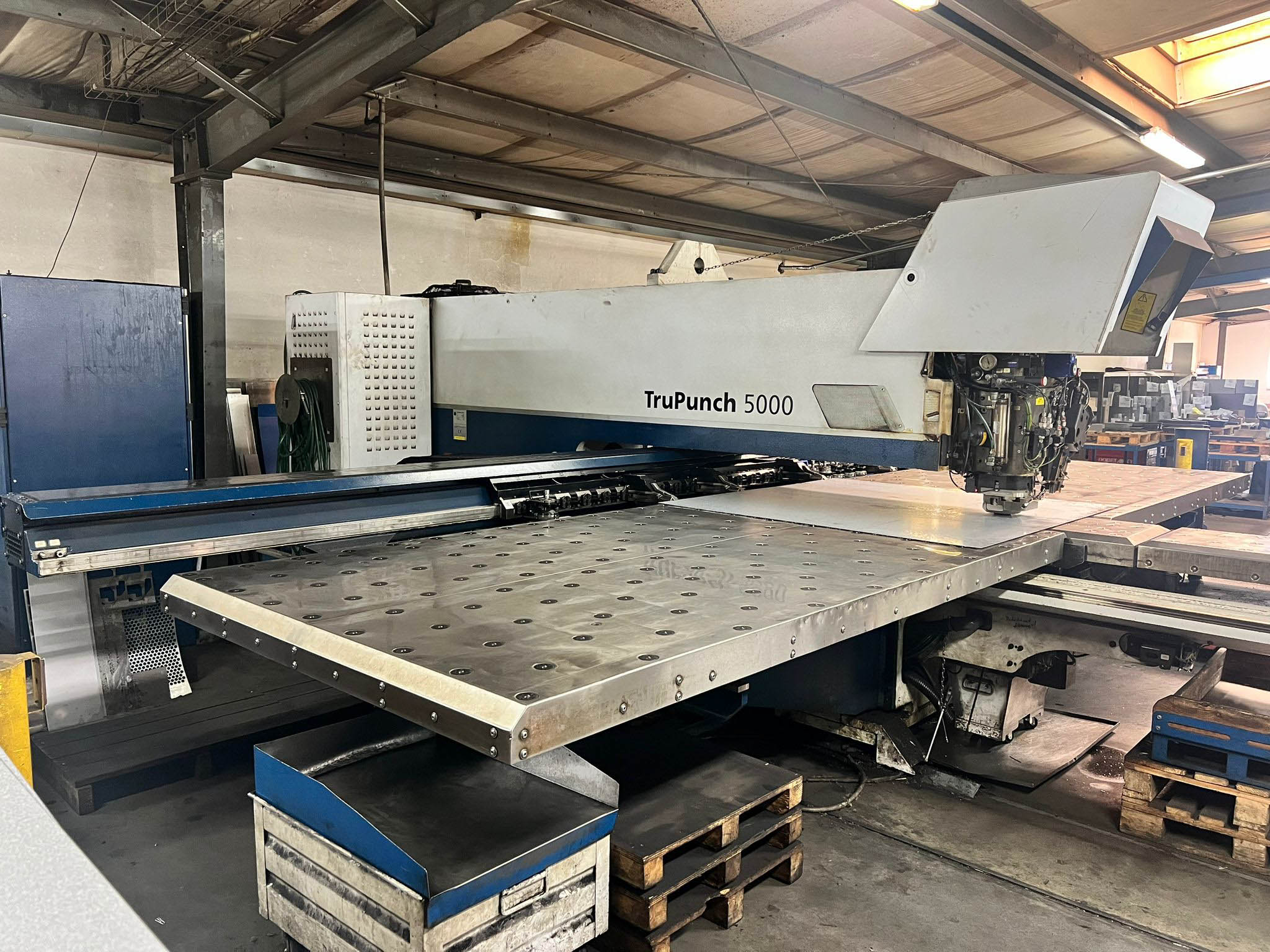

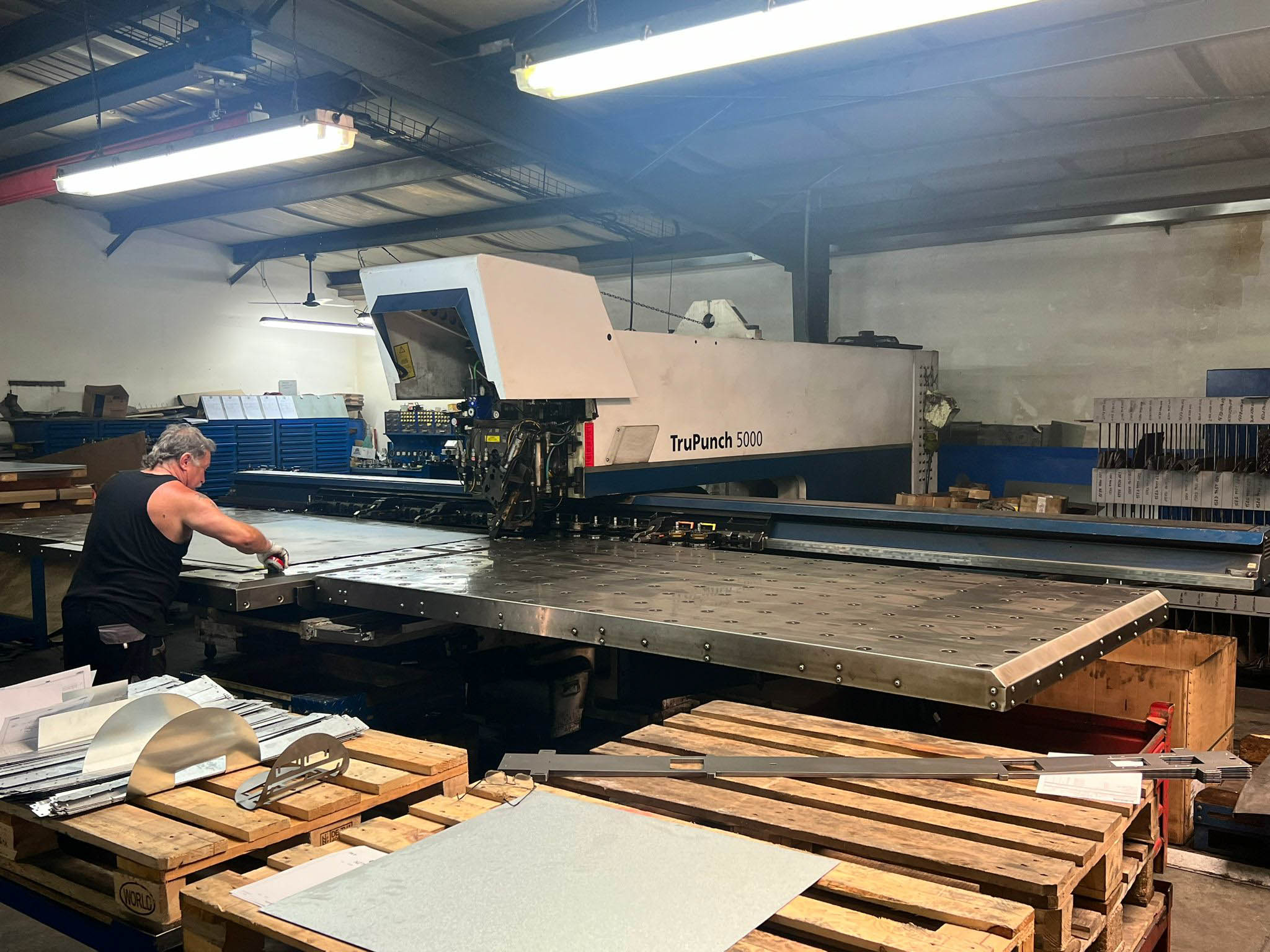

2010 TRUMPF TruPunch 5000 CNC punching machine
| Ref. | 3625823437 |
|---|---|
| Brands | TRUMPF |
| Models | TruPunch 5000 |
| Types of machine | CNC punching machine |
| Category | Punching machines |
| Year | 2010 |
| Availability | Available |
Technical Data
| Control type | Siemens SINUMERIK 840 D |
|---|---|
| Axis speed [X axis] max | 100 m/min |
| Axis speed [Y axis] max | 60 m/min |
| Dimensions (long x wide x high) | 7.600 x 8.171 x 2.072 mm |
| Material thickness (punching) max | 8 mm |
| Max. workpiece weight | 220 kg |
| Operating hours | 78.000 |
| Power: installed max | 9,5 kW |
| Punch diameter max | 76,2 mm |
| Punching force | 220 kN |
| Simultaneous positioning speed (X / Y) | 116 m/min |
| Weight | 19.300 kg |
| Working area max | 3.050 x 1.550 mm |
