TRUMPF TrumaBend V130 Official Catalogue
1994 TRUMPF TrumaBend V130 CNC Bending machine
| Ref. | 3620271875 |
|---|---|
| Brands | TRUMPF |
| Models | TrumaBend V130 |
| Types of machine | CNC Bending machine |
| Category | Bending machines |
| Year | 1994 |
| Availability | Available |
Technical Data
| Axes | 4 (X+R, Y1/Y2) |
|---|---|
| Bending length | 3.060 mm |
| Control | TRUMPF |
| Dimensions (long x wide x high) | 3.640 x 2.210 x 2.375 mm |
| Distance between uprights | 2.690 mm |
| Inclination of beam | +-10 mm |
| Oil tank capacity | 250 l |

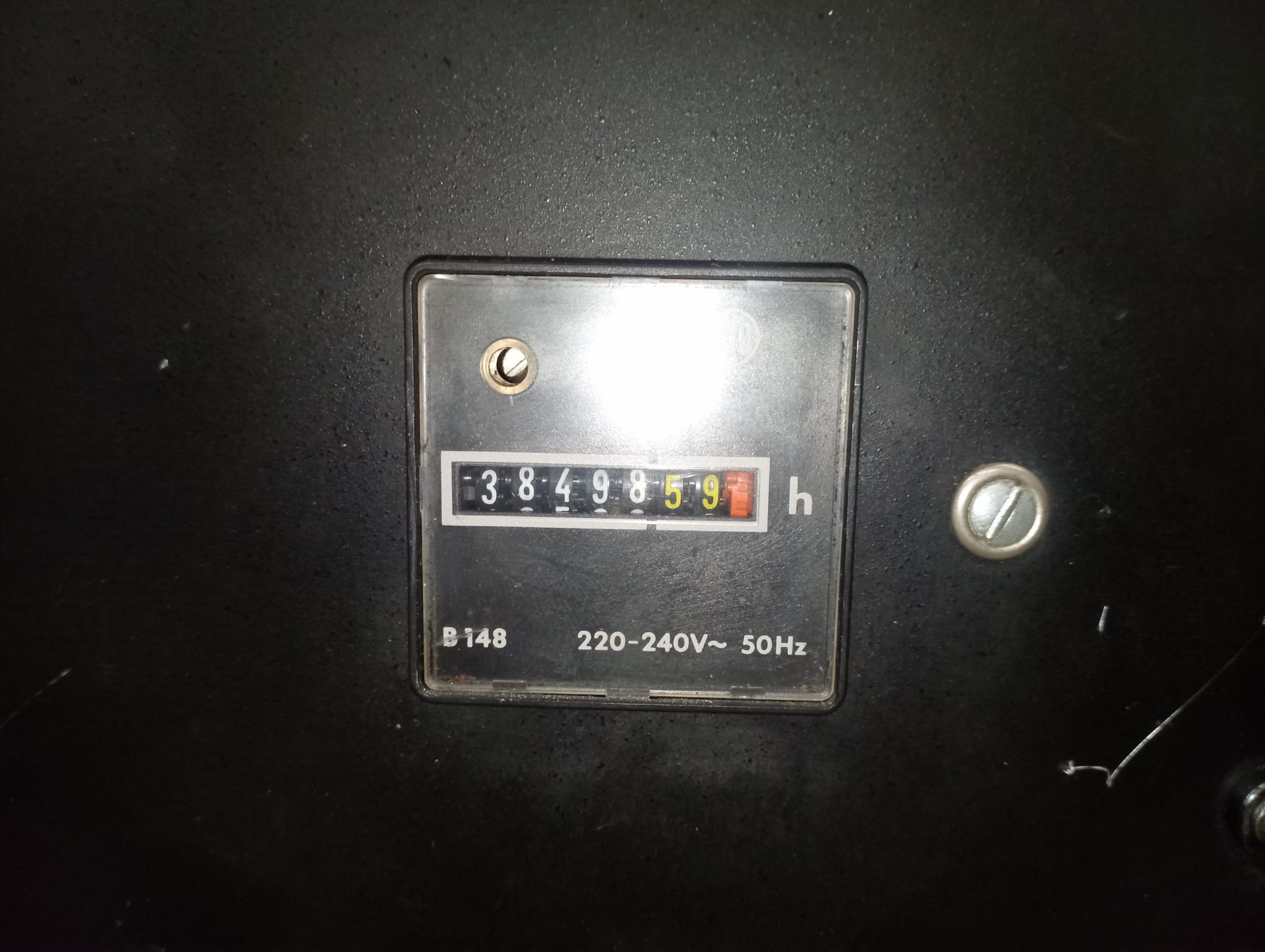

| Operating hours | 38.498h |
| Power: installed max | 18,5 kW |
| Pressure force | 130 t |
| Stroke max | 215 mm |
| Table width L -R | 120 mm |
| Throat | 410 mm |
| Weight | 11.250 kg |
| Working speed | 1-10 (Y) mm/seg |
| Working speed | 500 (X) mm/seg |
| Working speed | 300 (R) mm/seg |
