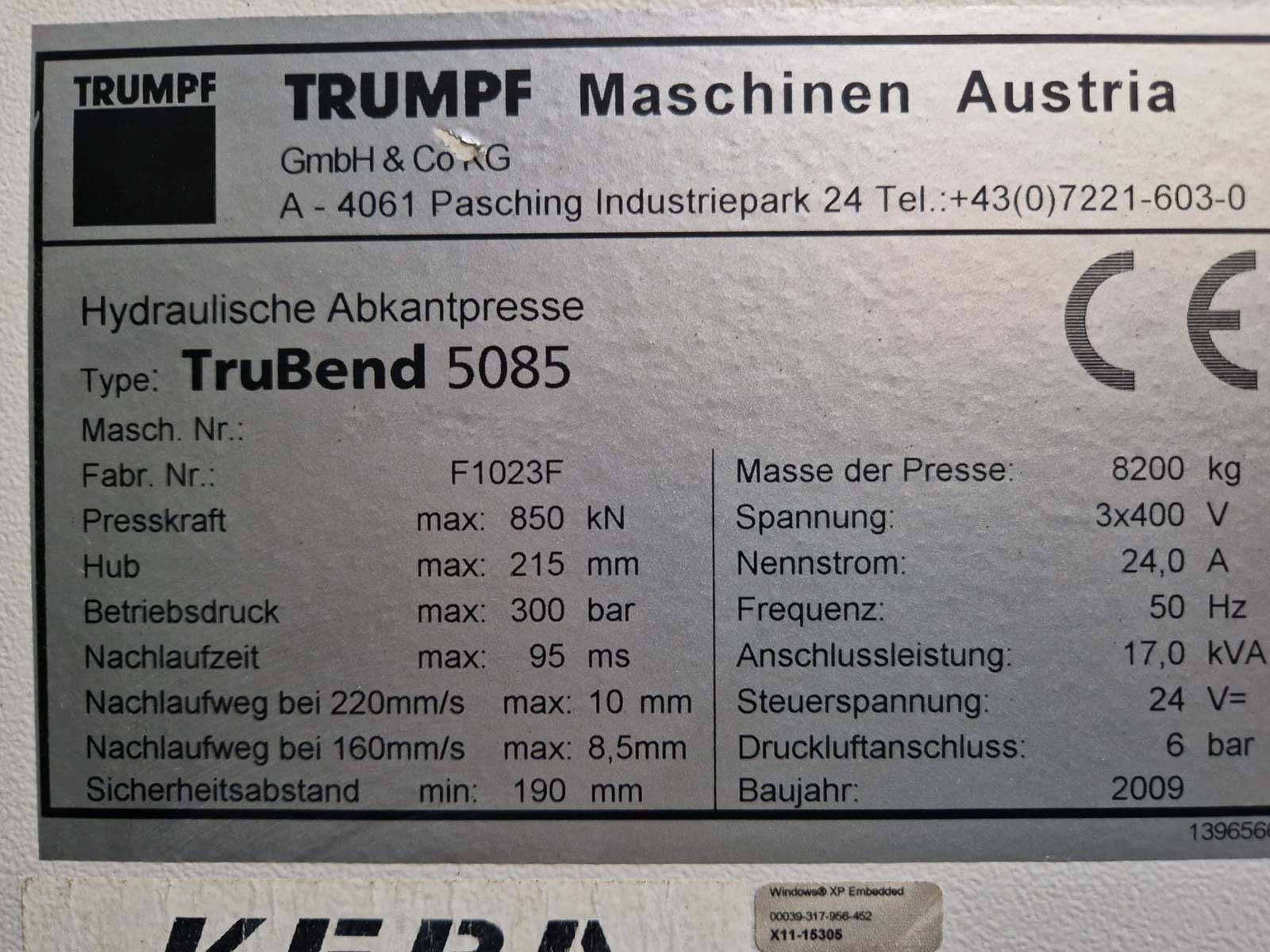

TRUMPF TruBend 5085 Technical Specification Sheet
2009 TRUMPF TruBend 5085 CNC Bending machine
| Ref. | 3594146875 |
|---|---|
| Brands | TRUMPF |
| Models | TruBend 5085 |
| Types of machine | CNC Bending machine |
| Category | Bending machines |
| Year | 2009 |
| Availability | Available |
Technical Data
| Axes | 6 |
|---|---|
| Bending length | 2.720 mm |
| Control | 24 |
| Dimensions (long x wide x high) | 3.100 x 1.740 x 2.840 mm |
| Pressure force | 86,68 t |
| Stroke max | 215 mm |
| Type | TASC 6000 |
| Weight | 8.200 kg |
| Working area | 860 x 2.210 mm |
| Working speed | 25 mm/seg |
