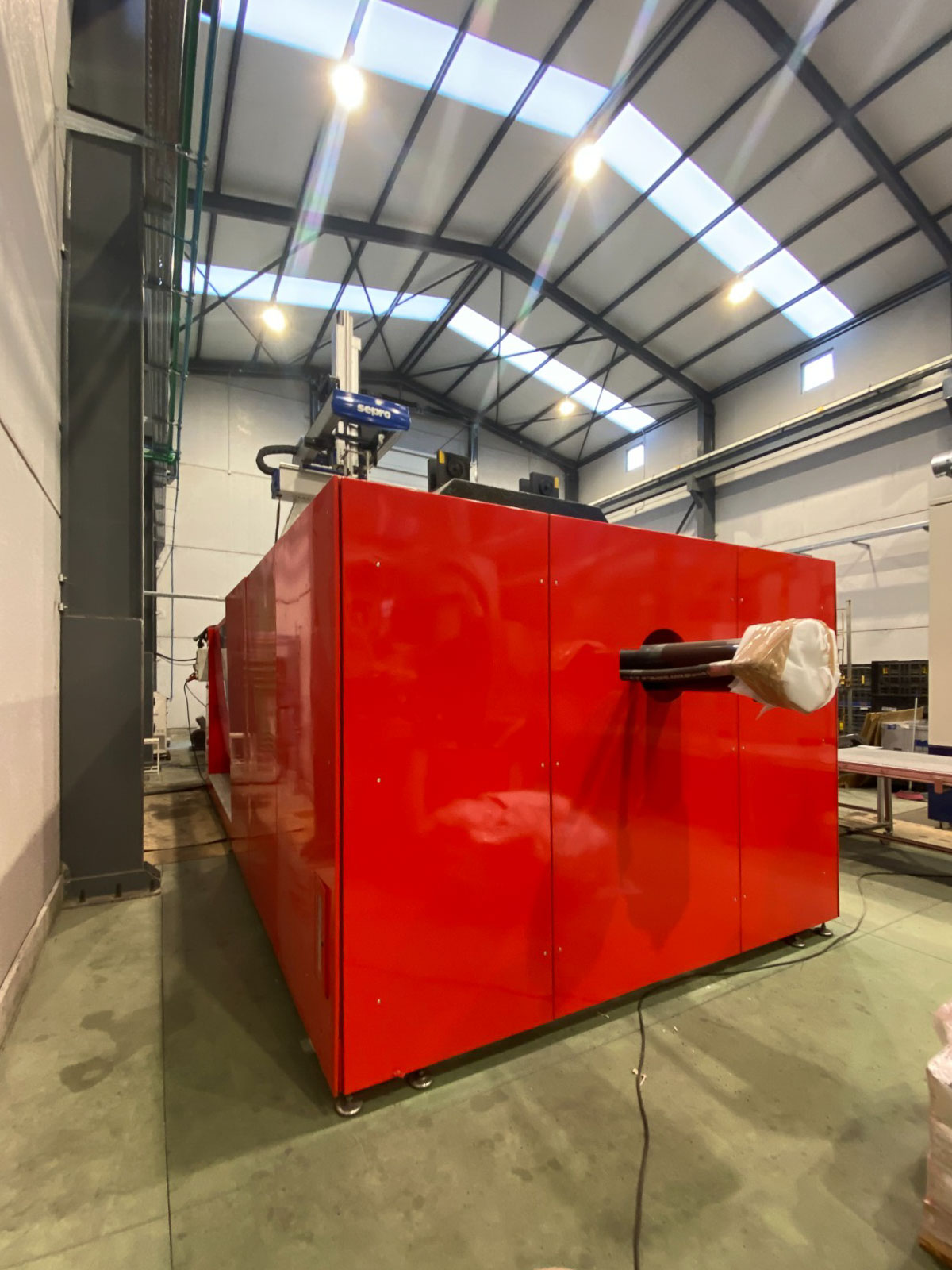

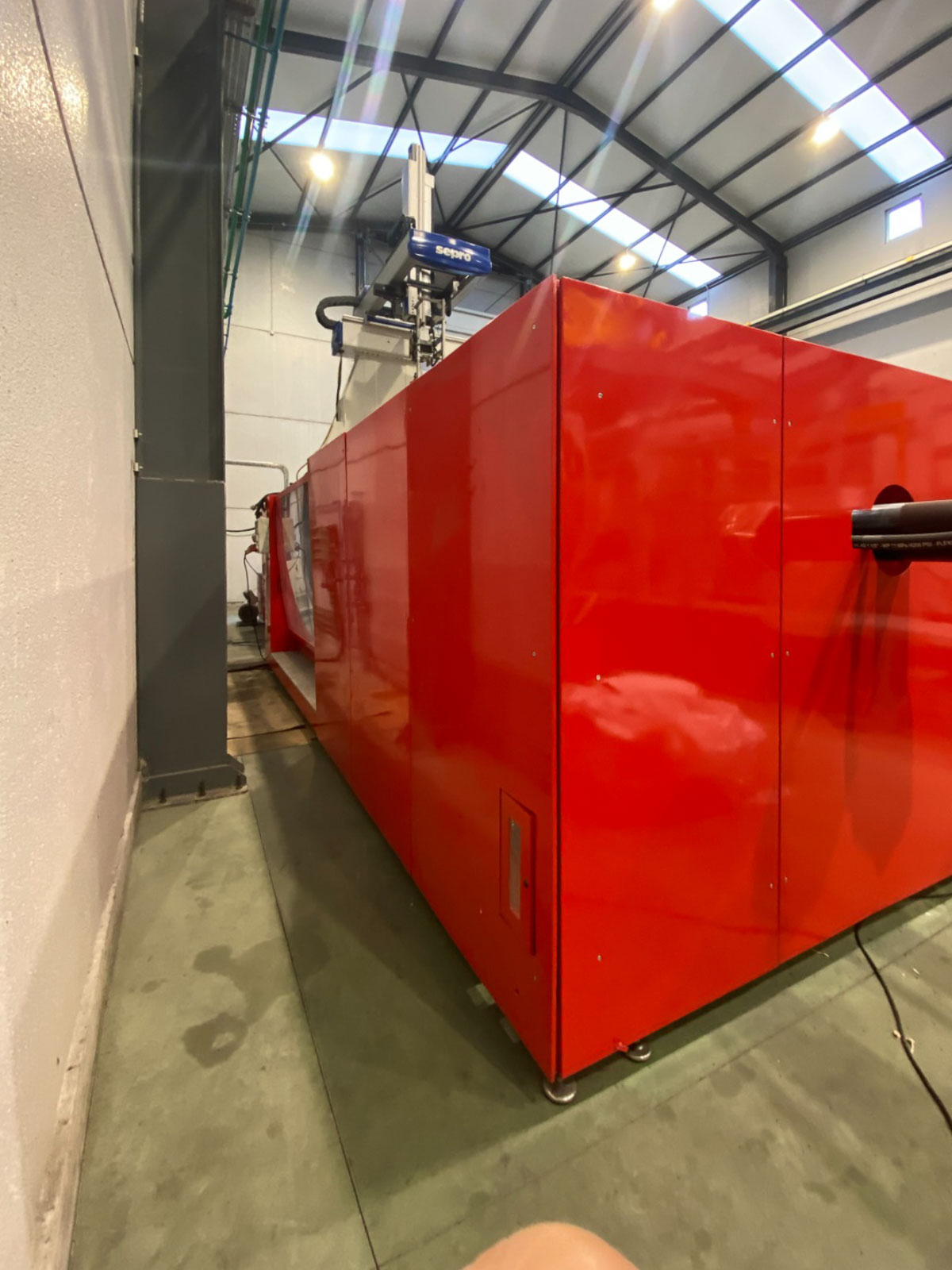

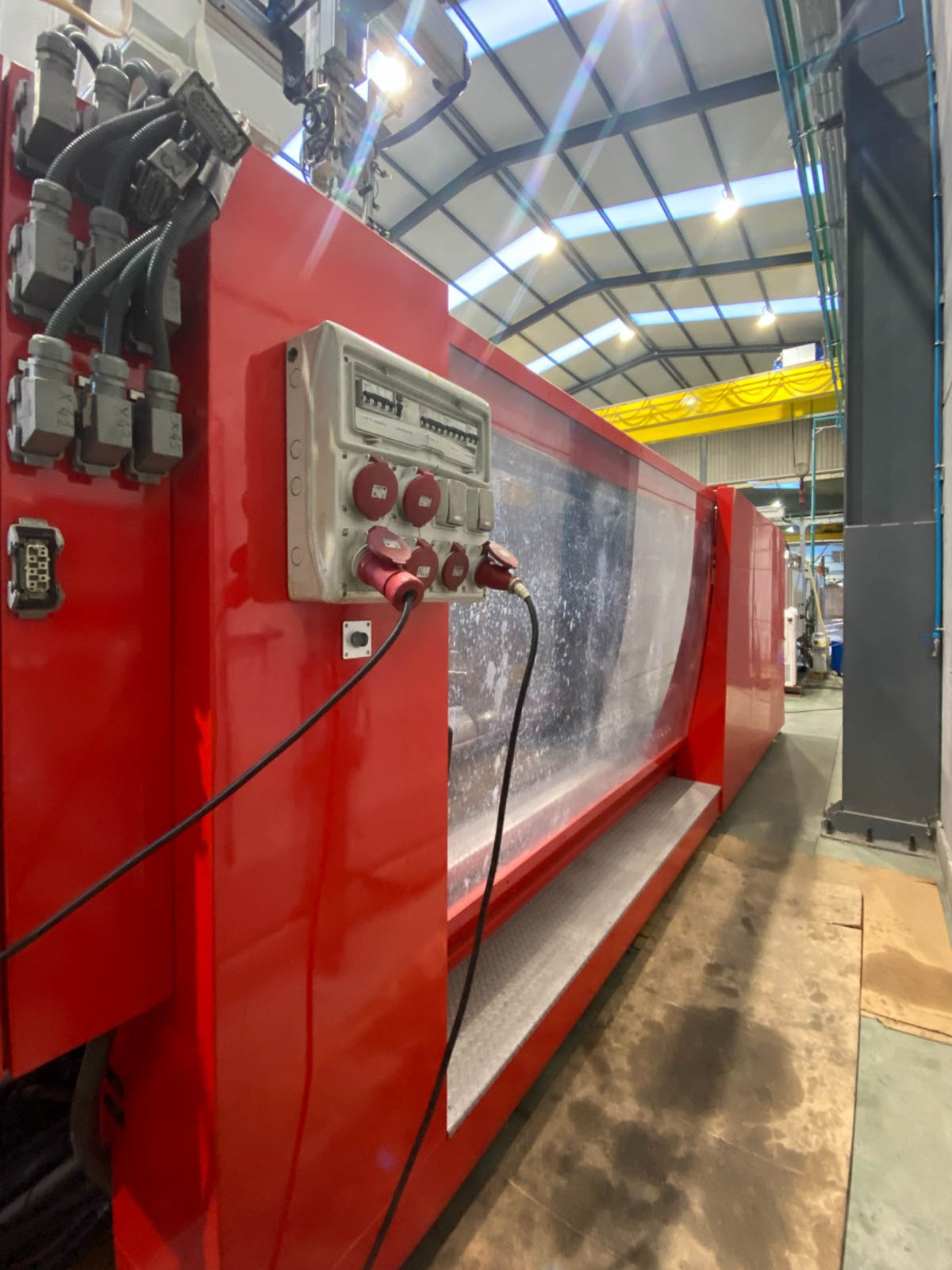

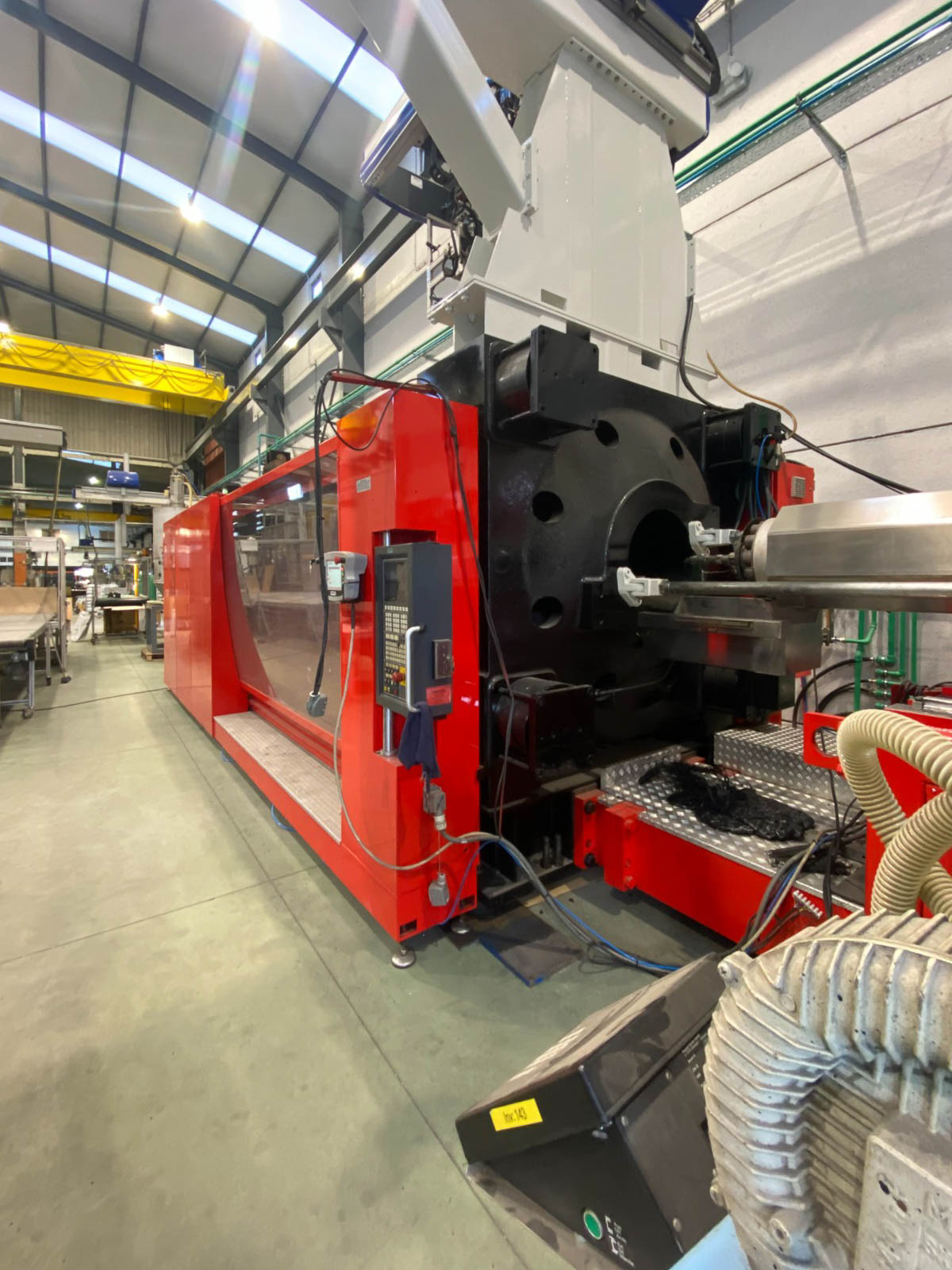

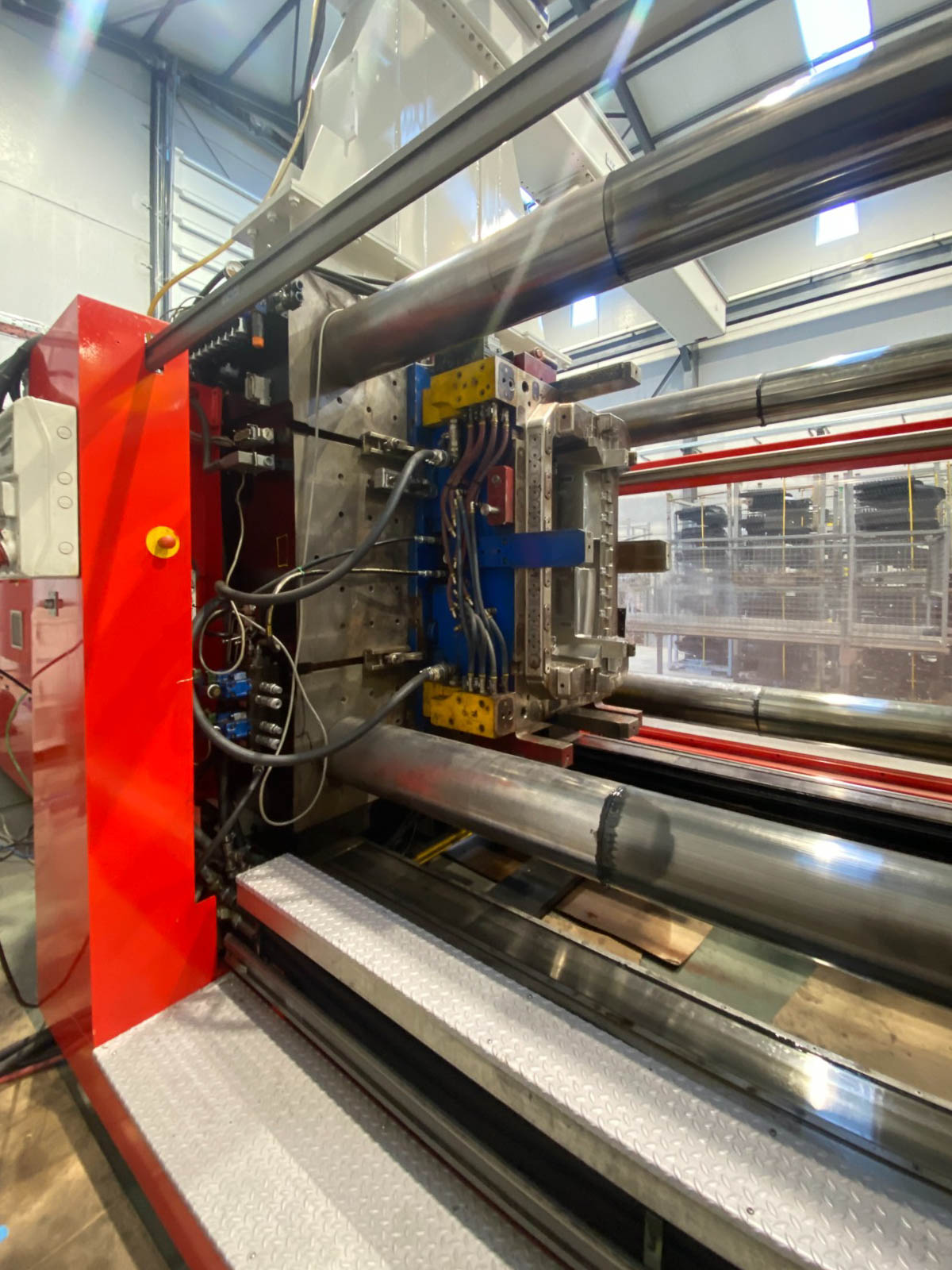

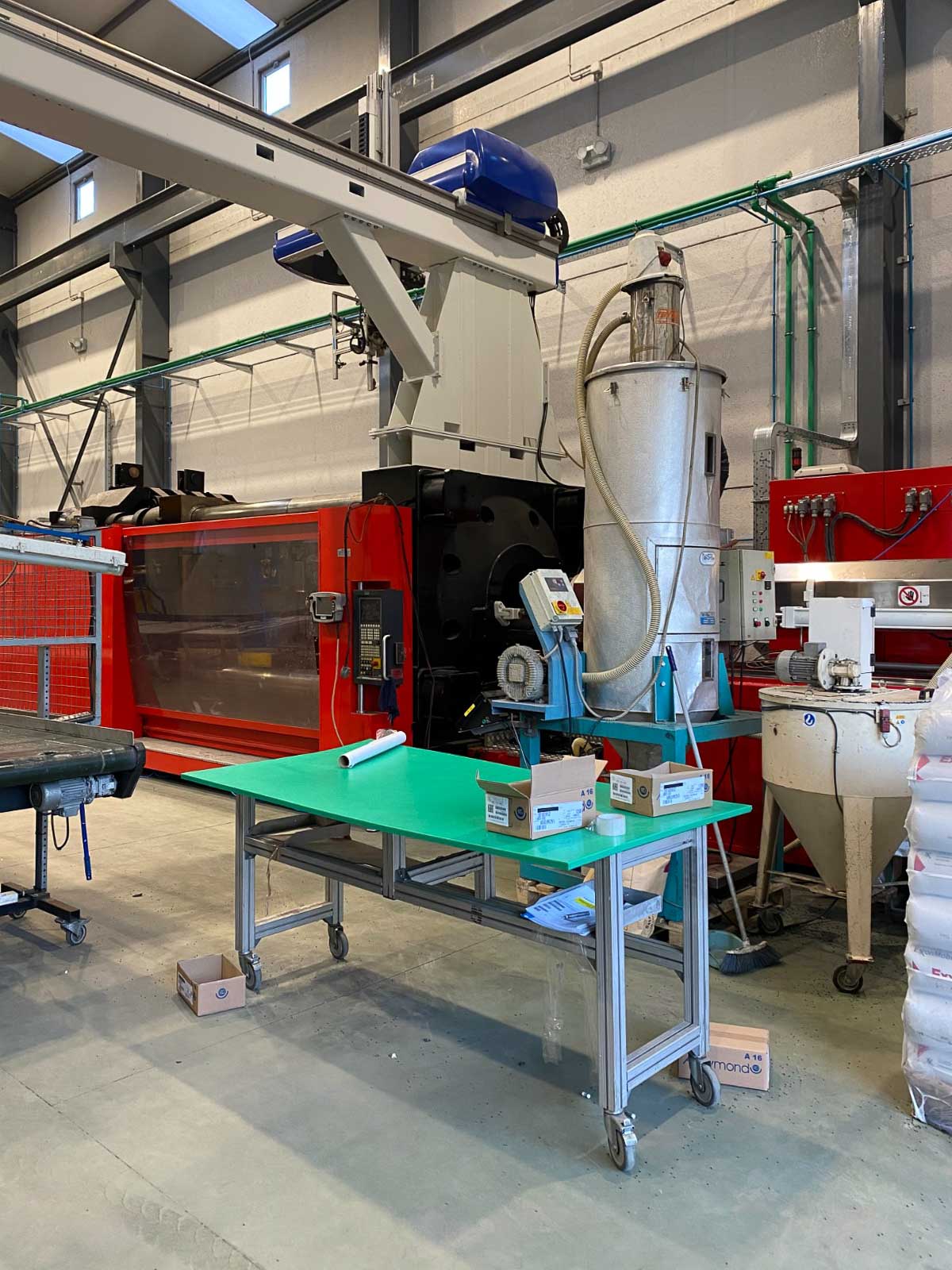

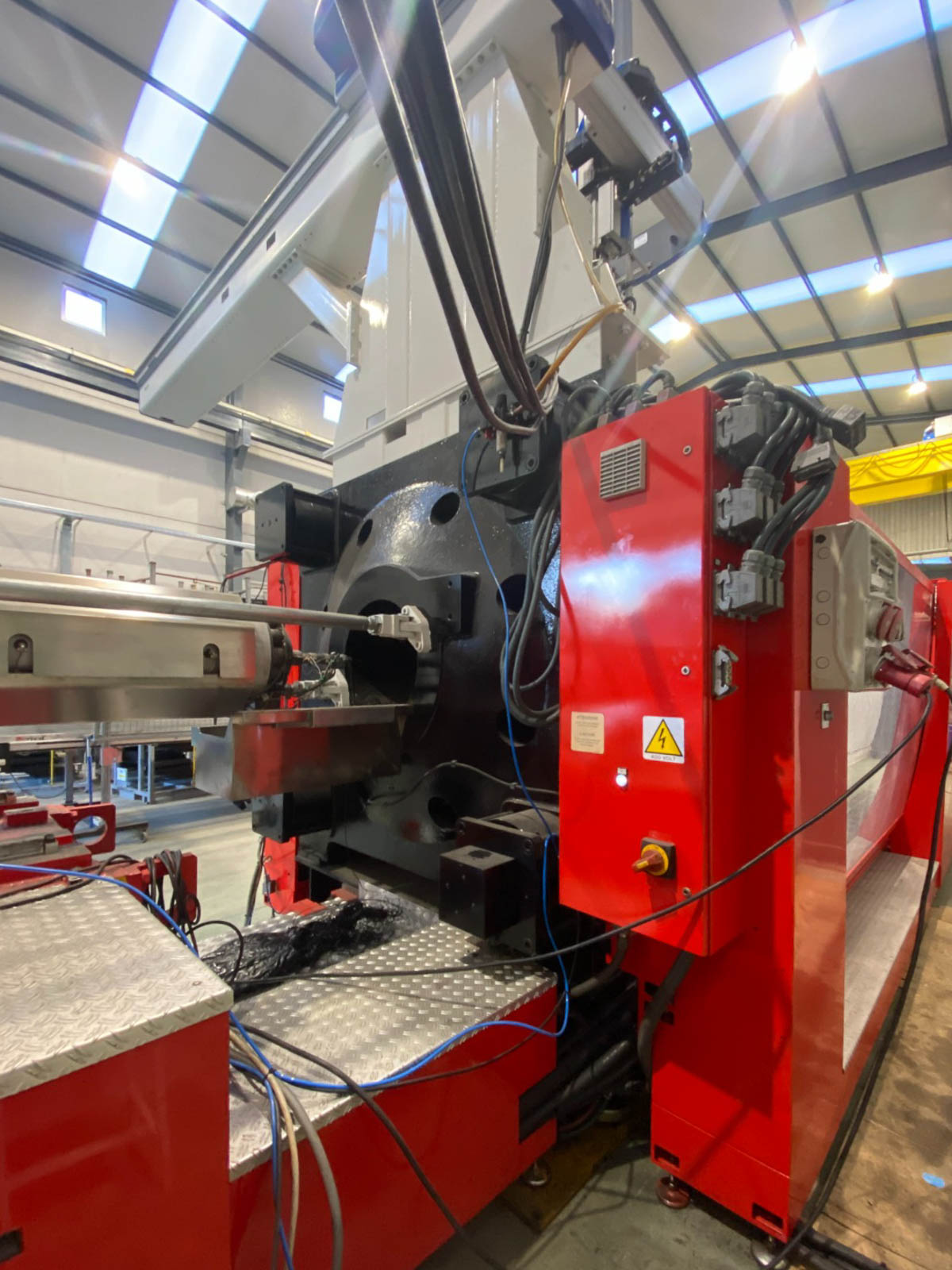

2008 NEGRI BOSSI V1600 1600t injection molding machine
| Ref. | 3602310937 |
|---|---|
| Brands | NEGRI BOSSI |
| Models | V1600 |
| Types of machine | 1600t injection molding machine |
| Category | 1000t or more Injection moulding machines |
| Year | 2008 |
| Availability | Available |
Technical Data
| Screw diameter | 135 mm |
|---|---|
| Clamping force | 15.000 kN |
| Clamping force | 2.300 kN |
| Daylight between platens max | 2 x 1.625 mm |
| Dimensions (long x wide x high) | 14.700 x 3.175 x 2.785 mm |
| Distance between tie-bars (h x v) | 1.400 x 1.250 mm |
| Dry cycle time | 10 sec/mm |
| Heating zones | 6 |
| Injection pressure | 1.710 bar |
| Injection rate | 1.110 cm³/s |
| Injection volume | 9.800 cm³ |
| Mould height max | 1.500 mm |
| Mould height min | 600 mm |
| Mould opening stroke max | 1.500 mm |
| Platen size (h x v) | 2.060 x 1.950 mm |
| Power: installed max | 327 + 37 kW |
| Screw L/D ratio | 20 |
| Screw speed | 105 rpm |
| Shot weight max | 8.920 g |
| Weight | 91.000 kg |
