BYSTRONIC ByStar fiber 3015 Official Catalogue

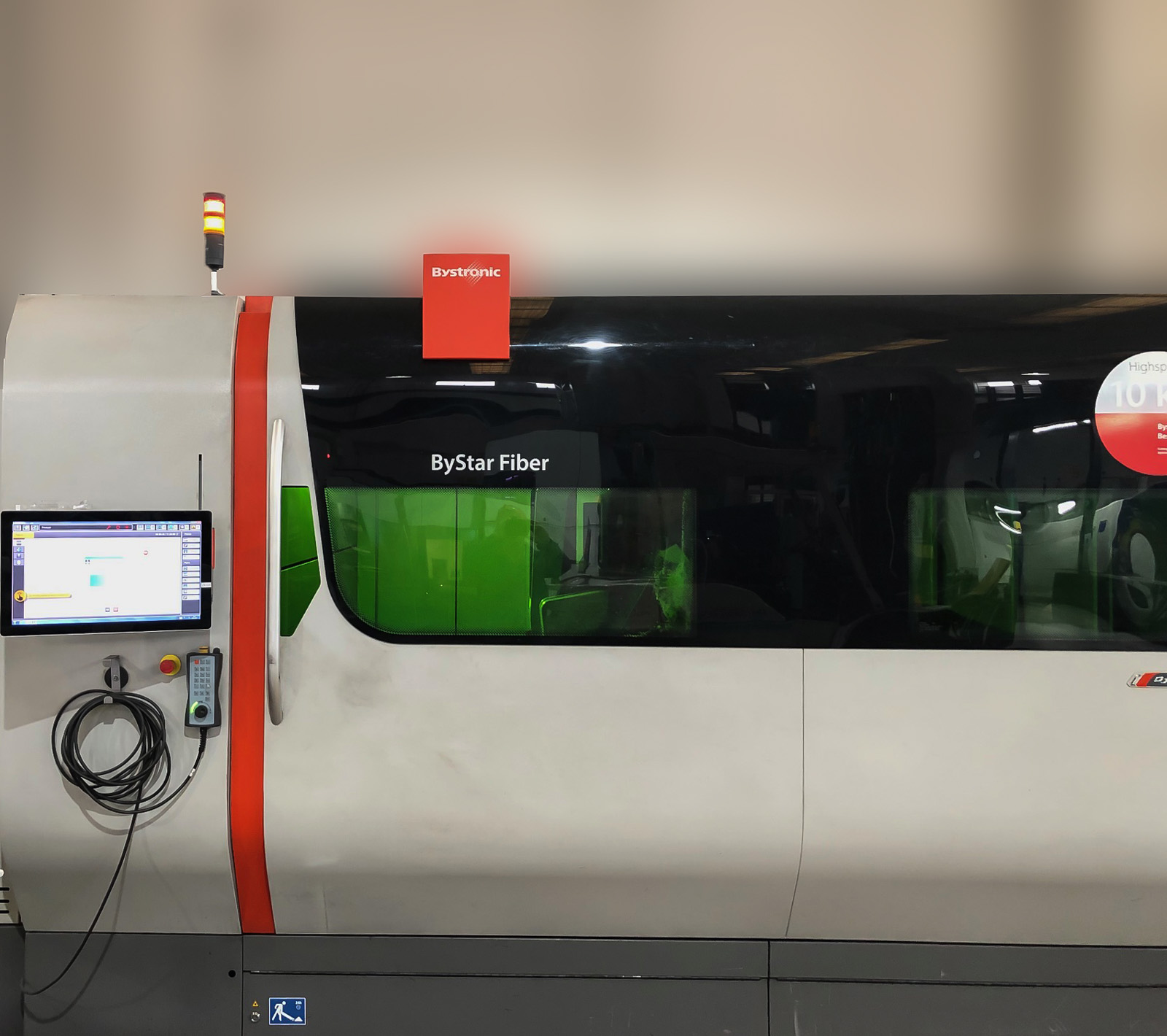

2018 BYSTRONIC ByStar Fiber 3015 Laser cutting machine (Fiber)
| Ref. | 3404087500 |
|---|---|
| Brands | BYSTRONIC |
| Models | ByStar Fiber 3015 |
| Types of machine | Laser cutting machine (Fiber) |
| Category | 2D Laser Cutting Machines |
| Year | 2018 |
| Availability | Sold |
Technical Data

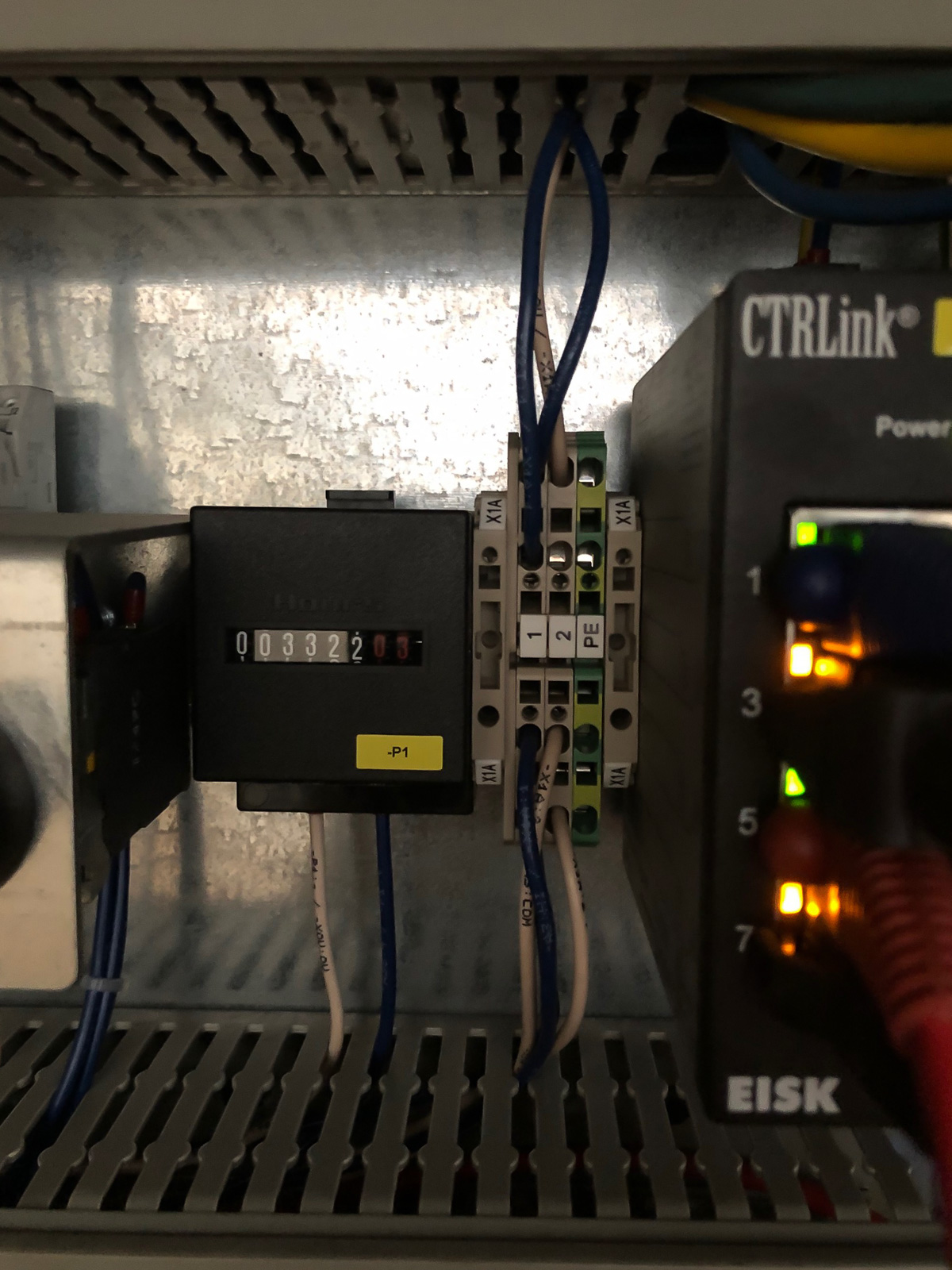

| Beam ON Working hours | 3.322 h |
|---|---|
| Control | BYSTRONIC ByMotion |
| Dimensions (long x wide x high) | 12.150 x 5.700 x 3.200 mm |

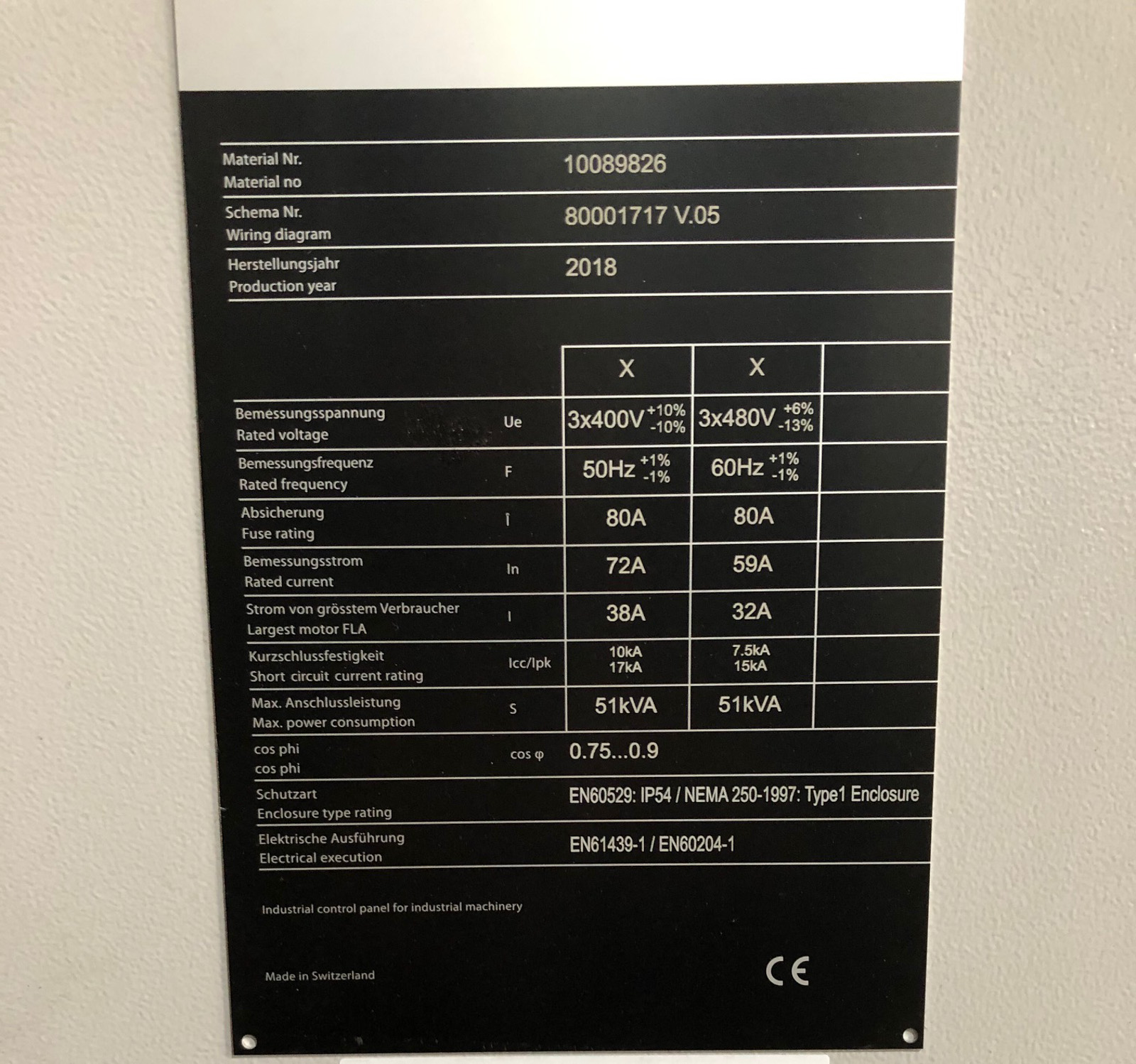

| Electric consumption entire unit | 36 kW |
| Laser Output | 10 kW |
| Laser Type | fiber |
| Machine ON Working hours | 3.322 h |
| Max. workpiece weight | 1.100 kg |
| Maximum material thickness aluminium | 30 mm |
| Maximum material thickness brass | 15 mm |
| Maximum material thickness cupper | 12 mm |
| Maximum material thickness mild steel | 25 mm |
| Maximum material thickness stainless steel | 30 mm |
| Positioning speed X/Y | 120 m/min |
| Simultaneous positioning speed | 169 X+Y m/min |
| Weight | 19.000 kg |
| Working area (X x Y x Z) | 3.100 x 1.580 x 100 mm |
